- Flat ceiling installation
- Suitable for the bathroom (IP44)
- Choose between 3000K and 4000K when mounting
- High light quality (RA90)
- Long LED lifespan (50,000 hours)
Socket type
LED – Non-replaceable light sourceDimmable?
Yes, has built-in dimmable light source for wall dimmerColour temperature (Kelvin)
3000/4000Brightness of light (Lumen)
600.0IP degree
IP20-44Area
IndoorPrimary material
MetalThis slim recessed downlight, Manacor, provides a flat ceiling installation for a clean, modern look. With an IP44 rating, it’s suitable for bathrooms. Choose between white light (3000K) and cold, white light (4000K) during installation to match your preferred light temperature. The high light quality (RA90) ensures accurate colour rendering in any setting.
Item Number
2610010001EAN
5704924025822TUN
2514011Area
IndoorType (Primary)
DownlightSocket type
LED – Non-replaceable light sourceDesigner
NordluxIP degree
IP20-44Class (Class 1, Class 2, Class 3)
Class 2 (Double isolated)Dimmable?
Yes, has built-in dimmable light source for wall dimmerParallel connection
YesVoltage (V)
220-240Actual watt (W)
6.0Primary material
MetalSecondary material
PlasticColour
WhiteColour code of the fixture
RAL 9003Mount directly into insulation
YesProduct net weight (kg)
0.205Brightness of light (Lumen)
600.0Colour temperature (Kelvin)
3000/4000Ra-value
90Lifetime (hours)
50000Beam angle (°)
120.0USB included
NoEnergy class
DLight source incl.
Incl. 6W LEDHeight (cm)
3.5Width (cm)
12.5Lenght (cm)
12.5Required built in hole diameter (cm)
10.0Built In Spot Height (cm)
3.2Diameter (cm)
12Sales Box Height (cm)
13.0Sales Box Width(cm)
16.0Sales Box Depth (cm)
5.1Sales Box Volume m³
0.0011
Datasheet
2610010001_DS_GB.pdf
2610010001_DS_SE.pdf
2610010001_DS_DK.pdf
2610010001_DS_NO.pdf
2610010001_DS_DE.pdf
2610010001_DS_FR.pdf
2610010001_DS_NL.pdf
Images
Manacor 2610010001_1.jpg
Manacor 2610010001_2.jpg
Manacor 2610010001_3.jpg
Manacor 2610010001_4.jpg
M Manacor 2610010001_1.jpg
Energy labels
2610010001-ERPLabelUK.pdf

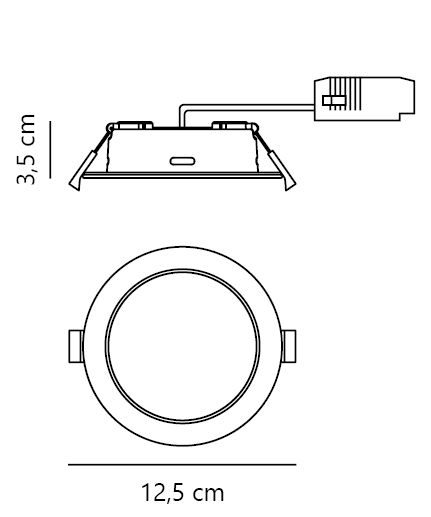

Linedrawing with measurement
Mounting instruction
2610010001-mountinginstruction.pdf
