- High IP degree (IP65)
- Can be mounted directly into insulation
- Low installation height
- Choose between warm-, white- and cold light when mounting
Socket type
LED – Non-replaceable light sourceDimmable?
Yes, has built-in dimmable light source for wall dimmerColour temperature (Kelvin)
2700/3000/4000Brightness of light (Lumen)
600.0IP degree
IP65IP20Area
IndoorPrimary material

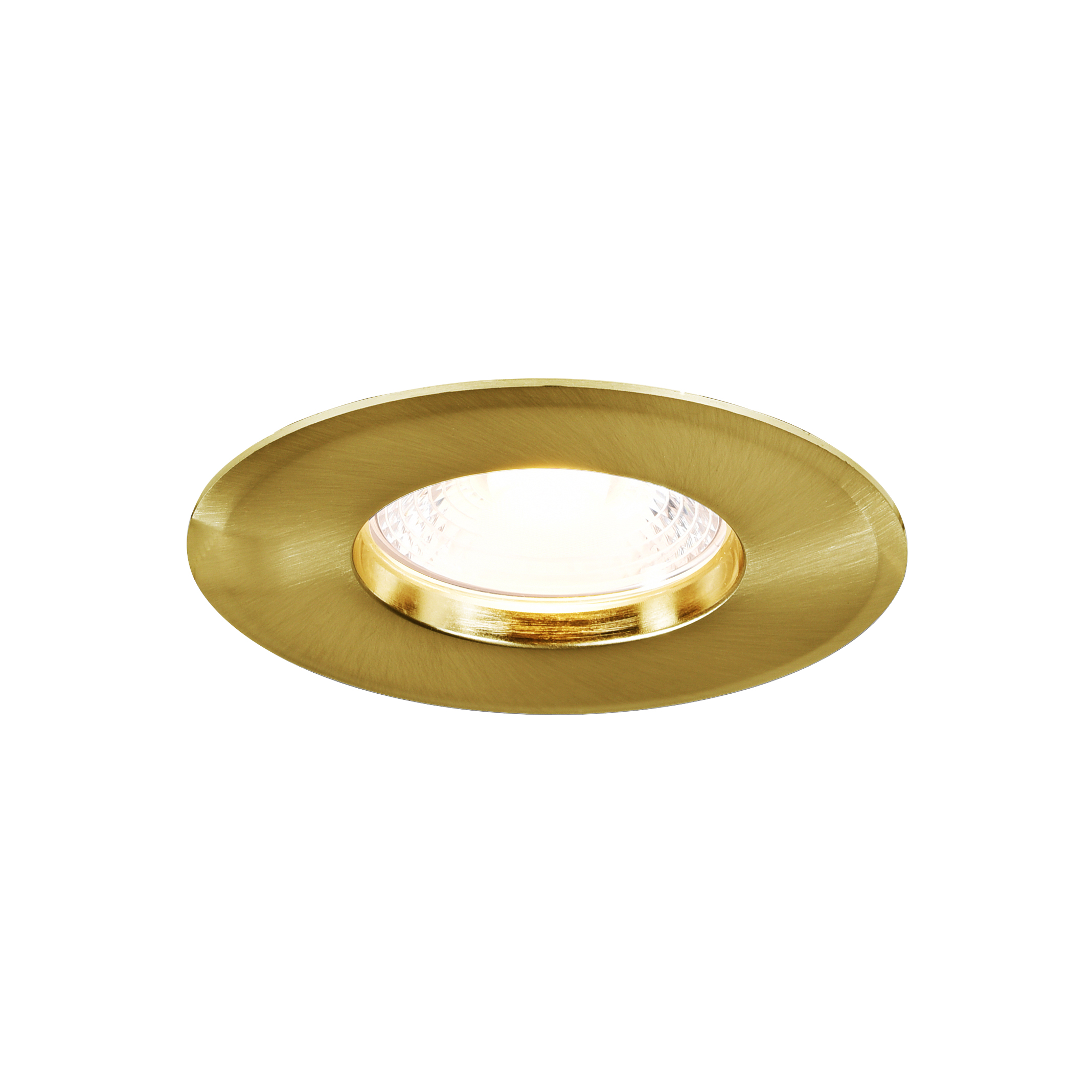

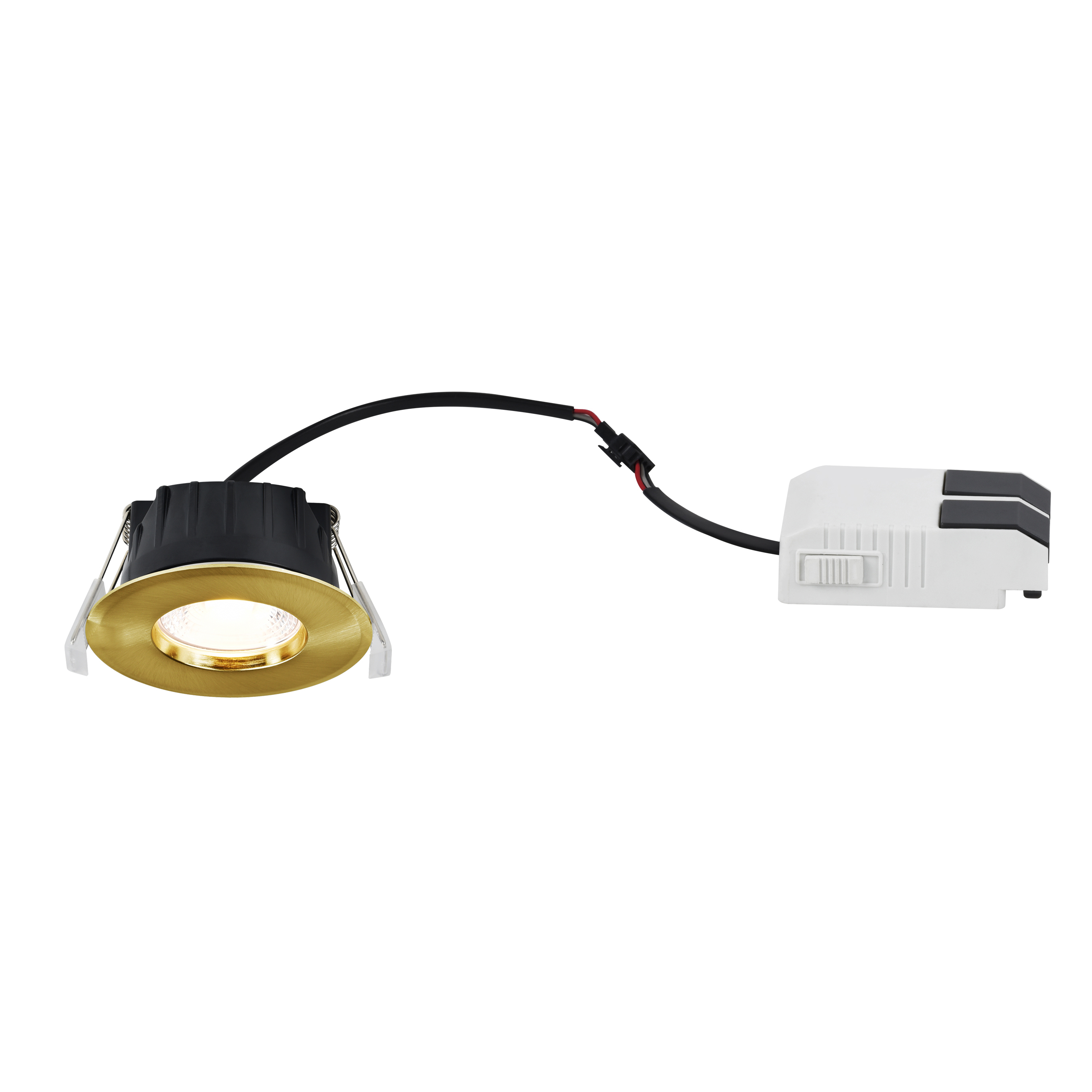

AluminiumRosalee is an elegant downlight with a high IP degree. Choose between warm- (2700K), white- (3000K) or cold (4000K) light with the built in kelvin switch. The downlight can be mounted directly into insulation and has a very low installation height.
Item Number
2410200135EAN
5704924027567TUN
2550066Area
IndoorType (Primary)
DownlightSocket type
LED – Non-replaceable light sourceDesigner
NordluxIP degree
IP65IP20Class (Class 1, Class 2, Class 3)
Class 2 (Double isolated)Dimmable?
Yes, has built-in dimmable light source for wall dimmerParallel connection
YesVoltage (V)
220-240Actual watt (W)
7.0Primary material
AluminiumSecondary material
PlasticColour
BrassColour of the cable
BlackLength of the cable (cm)
30.0Surface material of the cable
PlasticIs the cable replaceable
NoMount directly into insulation
YesProduct net weight (kg)
0.2114Brightness of light (Lumen)
600.0Colour temperature (Kelvin)
2700/3000/4000Ra-value
80Lifetime (hours)
50000Beam angle (°)
36.0Energy class
DLight source incl.
Incl. 7W LEDHeight (cm)
4.2Width (cm)
8.6Lenght (cm)
8.6Required built in hole diameter (cm)
6.8Built In Spot Height (cm)
4.0Diameter (cm)
8.6Length of the cable (cm)
30.0Sales Box Height (cm)
13.0Sales Box Width(cm)
13.0Sales Box Depth (cm)
7.0Sales Box Volume m³
0.0012
Datasheet
2410200135_DS_GB.pdf
2410200135_DS_SE.pdf
2410200135_DS_DK.pdf
2410200135_DS_NO.pdf
2410200135_DS_DE.pdf
2410200135_DS_FR.pdf
2410200135_DS_NL.pdf
Images
ROSALEE 2410200135_4.jpg
ROSALEE 2410200135_3.jpg
ROSALEE 2410200135_2.jpg
ROSALEE 2410200135_1.jpg
Energy labels
2410200135-ERPLabelUK.pdf
Linedrawing with measurement
241020-linedrawing.svg
Mounting instruction
2410200135-mountinginstruction.pdf
2410200135-mountinginstruction.pdf
2410200135-mountinginstruction.pdf
Declaration of Conformity
241020-CE.pdf
