- 2-step Moodmaker™ dimming function (2700K/4000K) using your standard wall switch
- Suitable for the bathroom (IP65)
- Parallel connection possible
- Connector block included
- 5-year LED guarantee
Bulb base
LED ModuleDimmable?
Yes, has built-in dimmable light source with Moodmaker™ functionalityWarmth of light (Kelvin)
Cold white (>3000K), White (3000K), Warm white (2700K)Brightness of light (Lumen)
345.0IP degree
IP65Area
IndoorMaterial

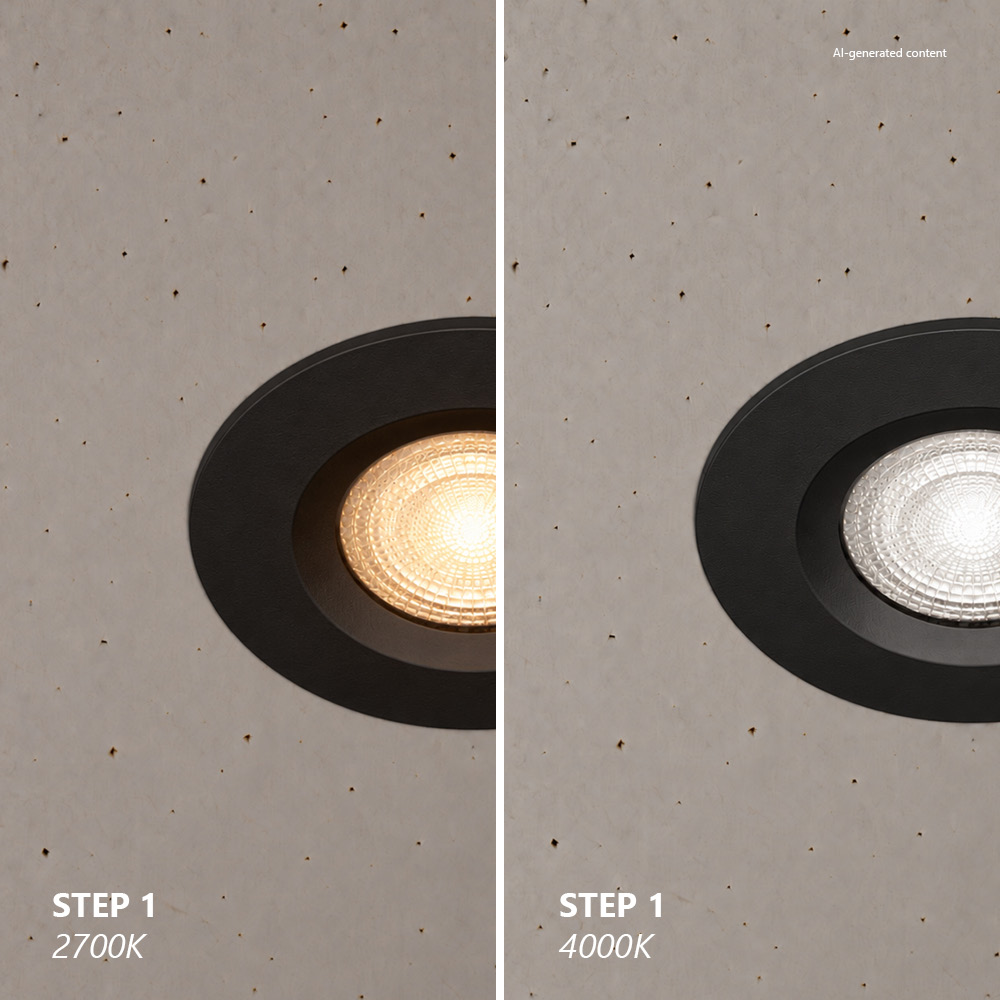

PlasticTiaki is a round downlight with integrated LED, allowing for parallel connection. Tiaki has the Moodmaker™ function, which allows you to dim the light in two steps without the use of a dimmer switch, simply using your standard wall switch. The downlight automatically remembers the previous light setting. Tiaki allows you to switch between 600 lm at 4000K and 345 lm at 2700K. It even meets protection rating IP65, which makes it suitable for use in e.g. the bathroom.
Item Number
49570103EAN
5704924016516TUN
2337413Area
IndoorType
DownlightRoom
KitchenBulb base
LED ModuleDesigner
NordluxIP degree
IP65Class (Class 1, Class 2, Class 3)
Class 2 (Double isolated)Dimmable?
Yes, has built-in dimmable light source with Moodmaker™ functionalityParallel connection
YesVoltage (V)
230Actual Watt (W)
6.5Material
PlasticSecondary material
MetalColor
BlackMount directly into insulation
NoProduct net weight (kg)
0.15Brightness of light (Lumen)
345.0Color Temperature (K)
2700/4000Ra-value
80Lifetime (h)
20000Beam Angle (°)
100.0Energy Class
FLightsource incl.
Incl.5,7-8,6WHeight (cm)
4.5Required built in hole diameter (cm)
7.2Built In Spot Height (cm)
5.5Built In Spot Diameter (cm)
8.5Diameter (cm)
8.5Sales Box Height (cm)
13.0Sales Box Width(cm)
13.0Sales Box Depth (cm)
6.5Sales Box Volume m³
0.0011
Datasheet
49570103_DS_GB.pdf
49570103_DS_SE.pdf
49570103_DS_DK.pdf
49570103_DS_NO.pdf
49570103_DS_DE.pdf
49570103_DS_FR.pdf
49570103_DS_NL.pdf
Images
Tiaki 49570103_1.jpg
Tiaki 49570103_3.jpg
Tiaki 49570103_2.jpg
Tiaki 49570103_2.jpg
Artwork
49570103-Artwork.pdf
Linedrawing with measurement
4957-linedrawing.svg
Mounting intruction
49570103-Mountinginstruction.pdf
5-year LED guarantee
Nordlux offers a 5-year LED guarantee on the quality and performance of integrated LED modules in our lights.
